Case

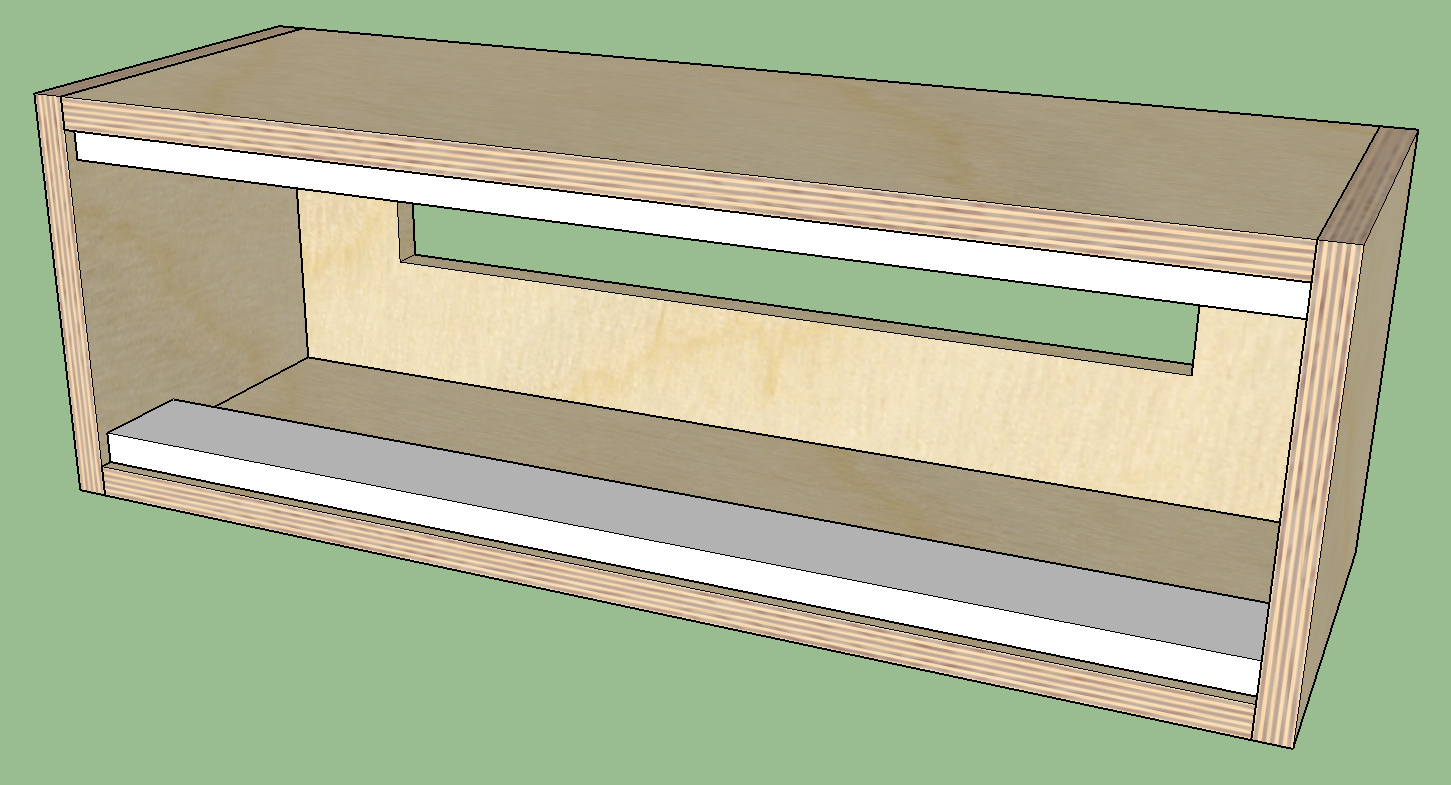

Will probably build a single unit, then add a second on top if required.

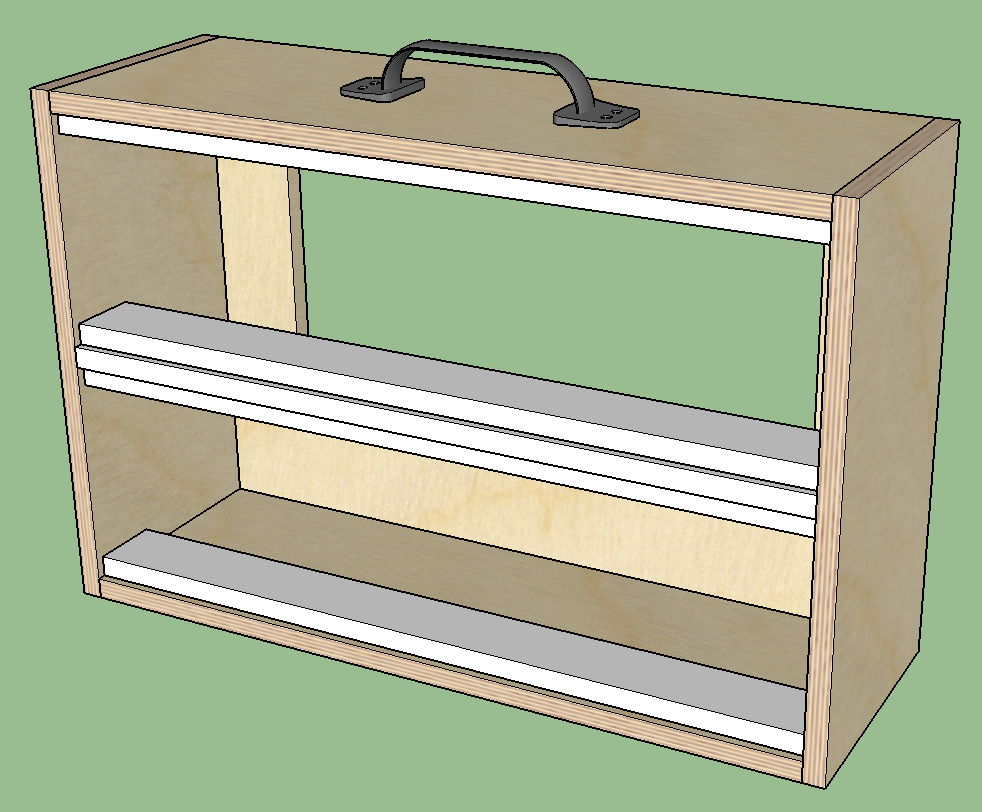

Alternatively could build a double to start with.
Power Supply

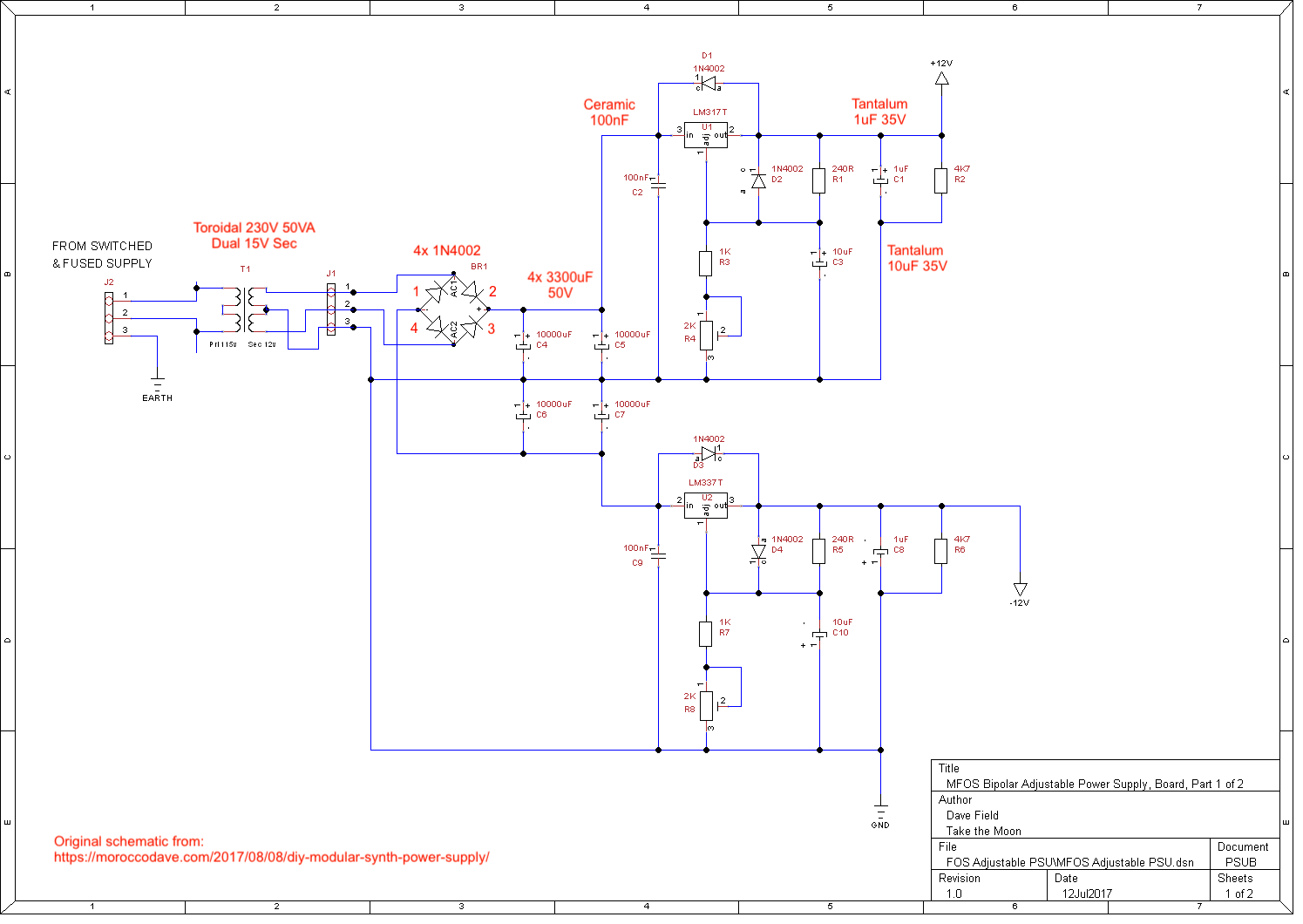

This power supply base on Morrocco Dave’s version, providing +/- 12V at 1A. Some components were modified to cater for what I had available and could source through Tayda Electronics.

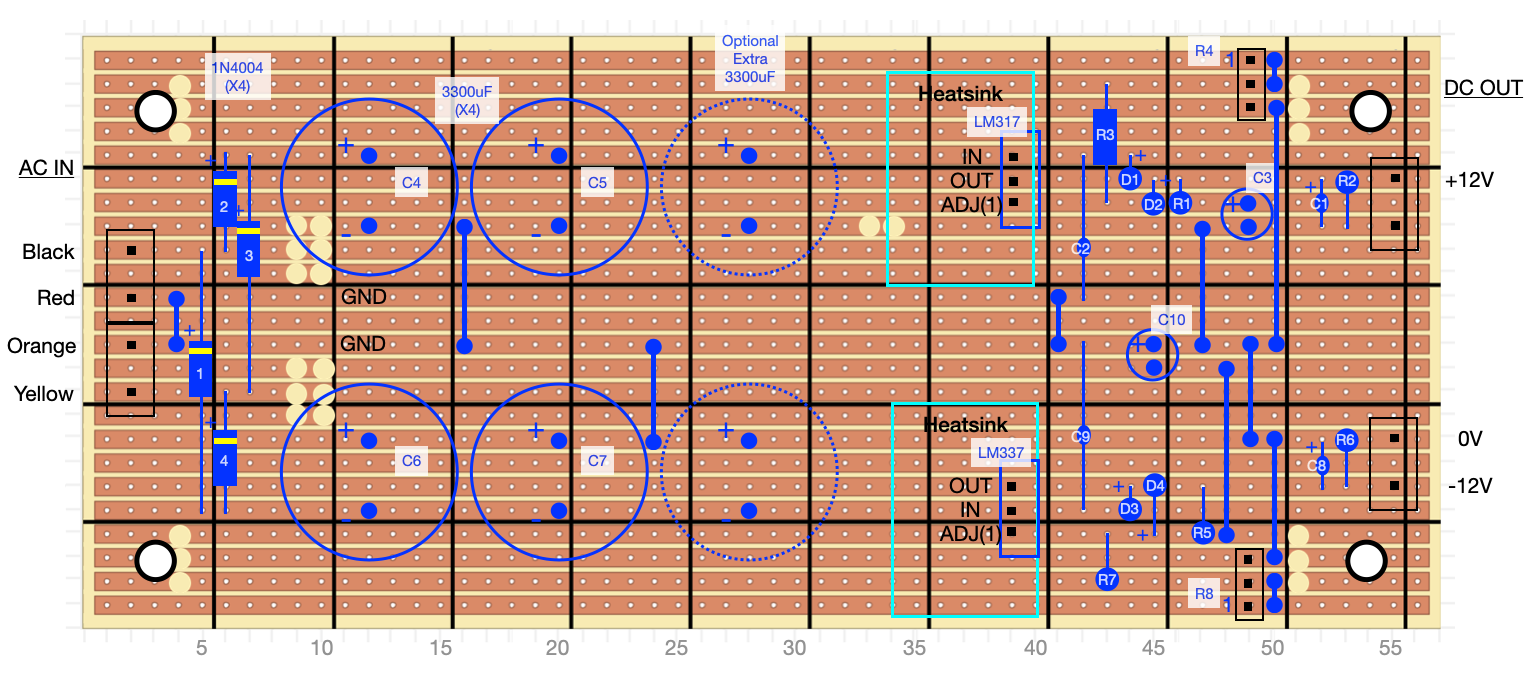

It is built on stripboard and uses a toroidal transformer.
References / Resources
- Files on Titan:
/Archive_Jekyll/files/electronics/synthesiser/…- 00 Case
- 01 PSU build
